What's new!
- Improved Highwall Scanning Algorithm
- SkyFleet Cached Data List
- Improved UI/UX for Highwall Scanning and Terrain Following Missions
- Hardening Items
Demo Video
Highwall Scanning Algorithm
-
The new Highwall Scanning algorithm automatically detects highwall orientation,
ensuring the drone flies in the correct direction without manual intervention. - Users can now map multiple highwalls with different orientations in a single mission plan, improving capture time and battery consumption
-

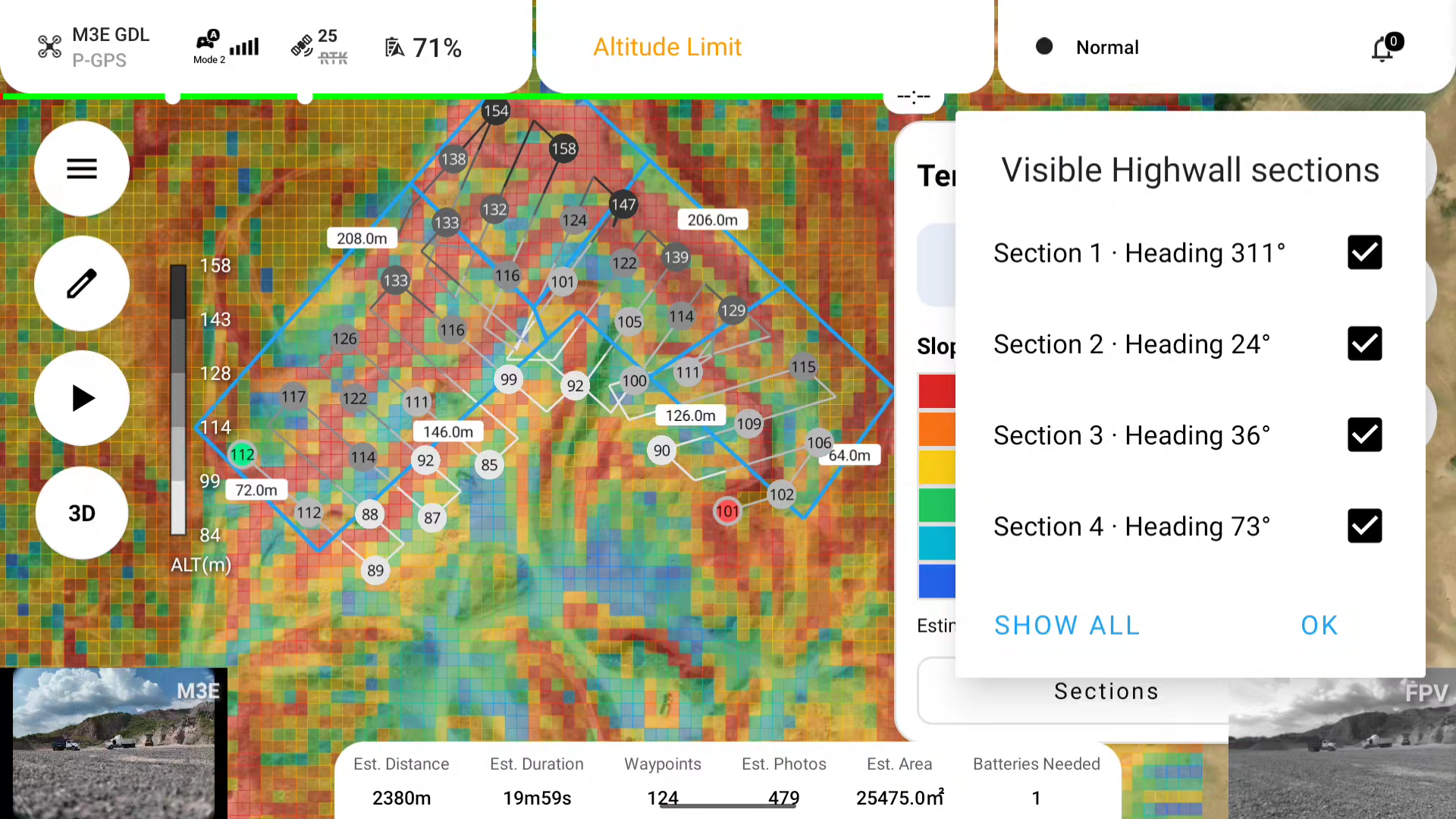

Select and visualize sections before takeoff, providing greater visibility and control
during mission planning. -
Both the existing and new Highwall Scanning algorithms are available in
SkyFlight as options.

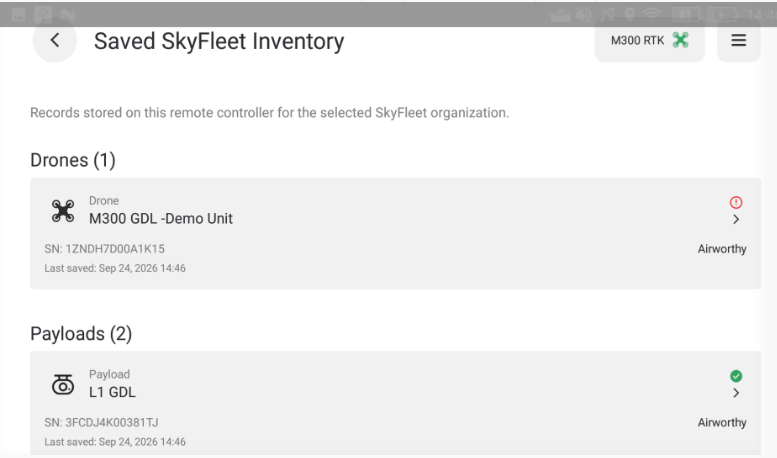

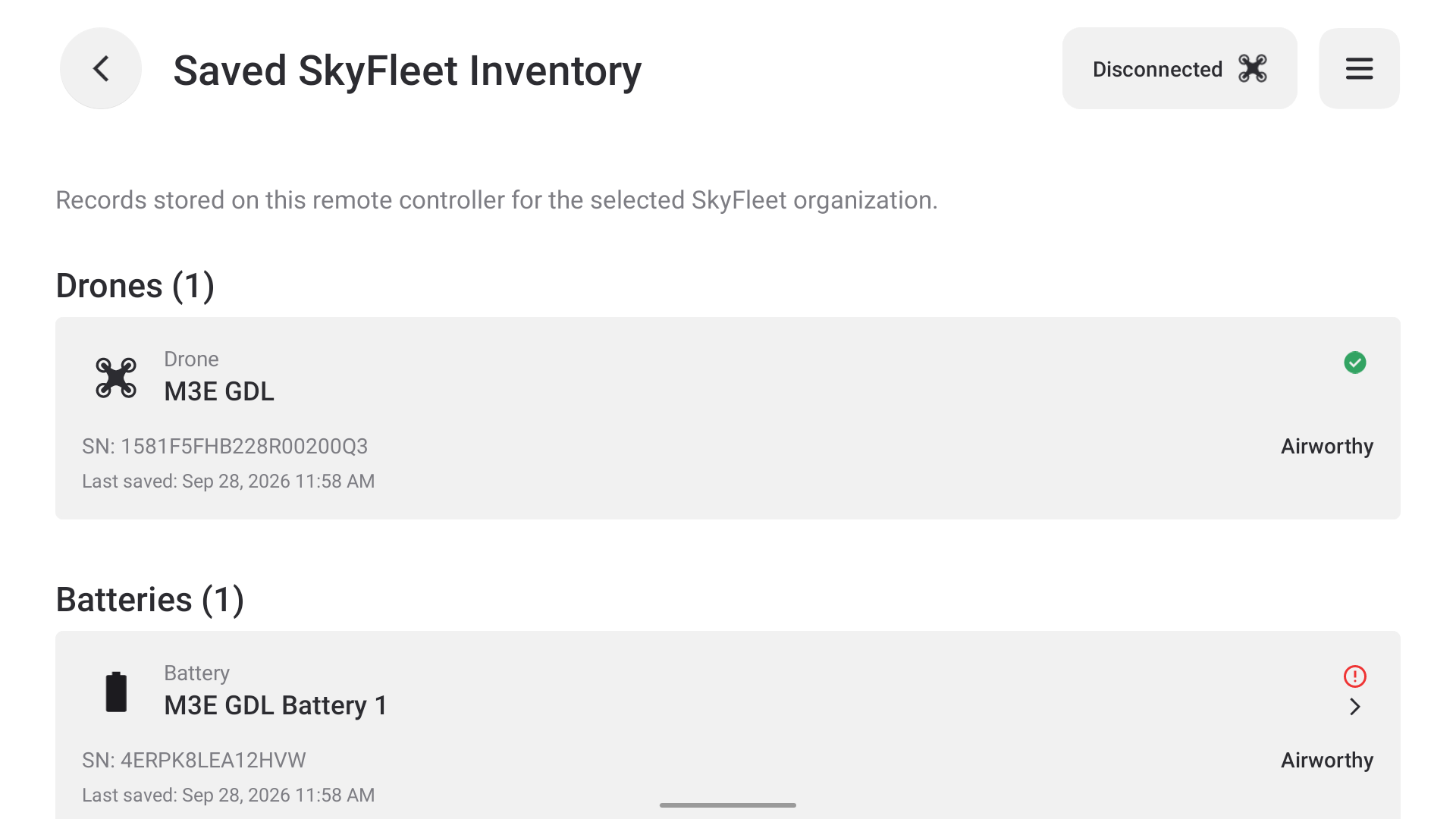

SkyFleet Cached Data List
-
Users can access and view SkyFleet cached data, including pilot records and hardware inventory, that has previously been synchronized to the remote
controller. - This information allows pilots to complete pre-flight activities and review essential compliance information without an internet connection and while the drone is powered off.
Improved UI/UX

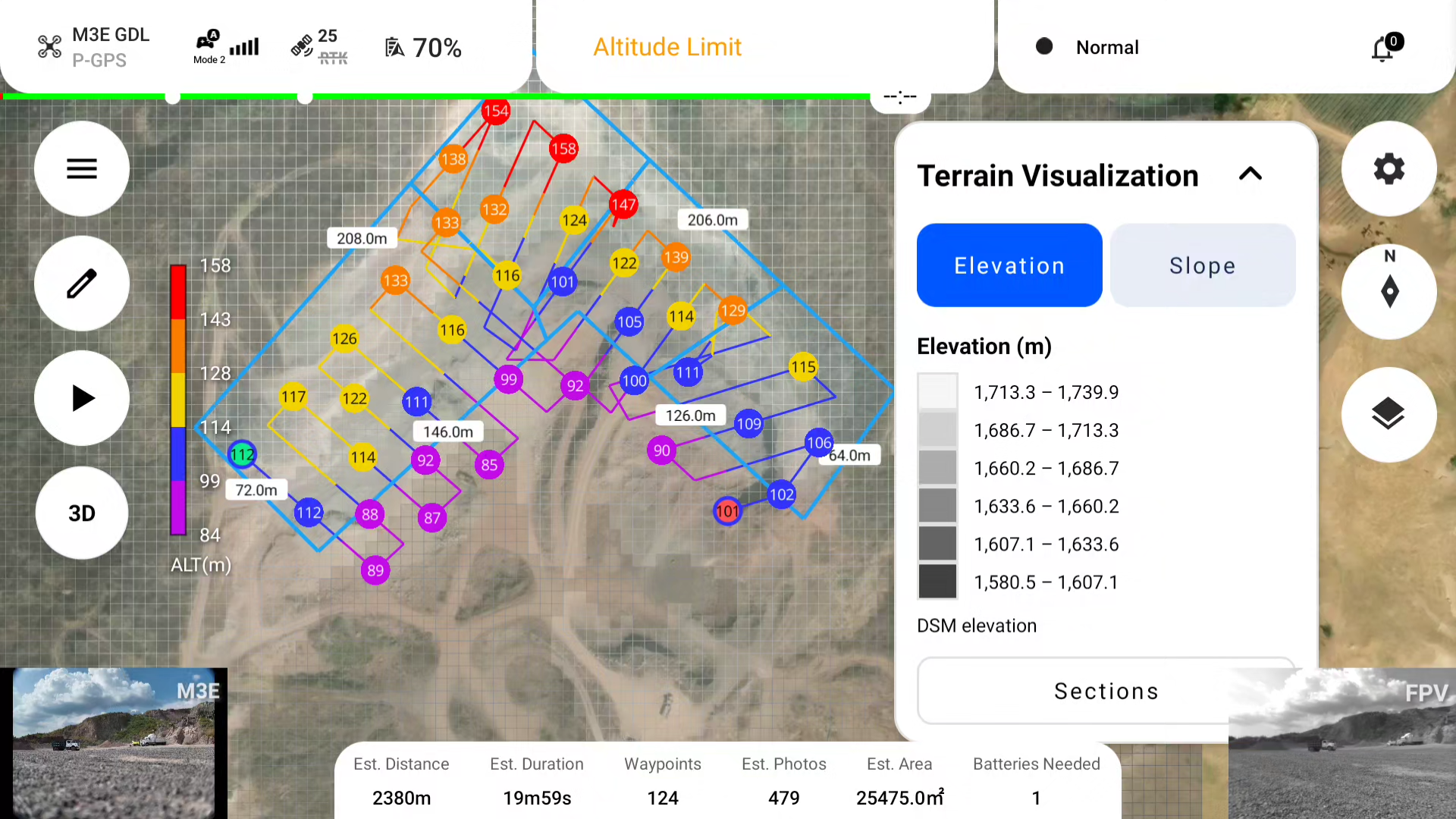

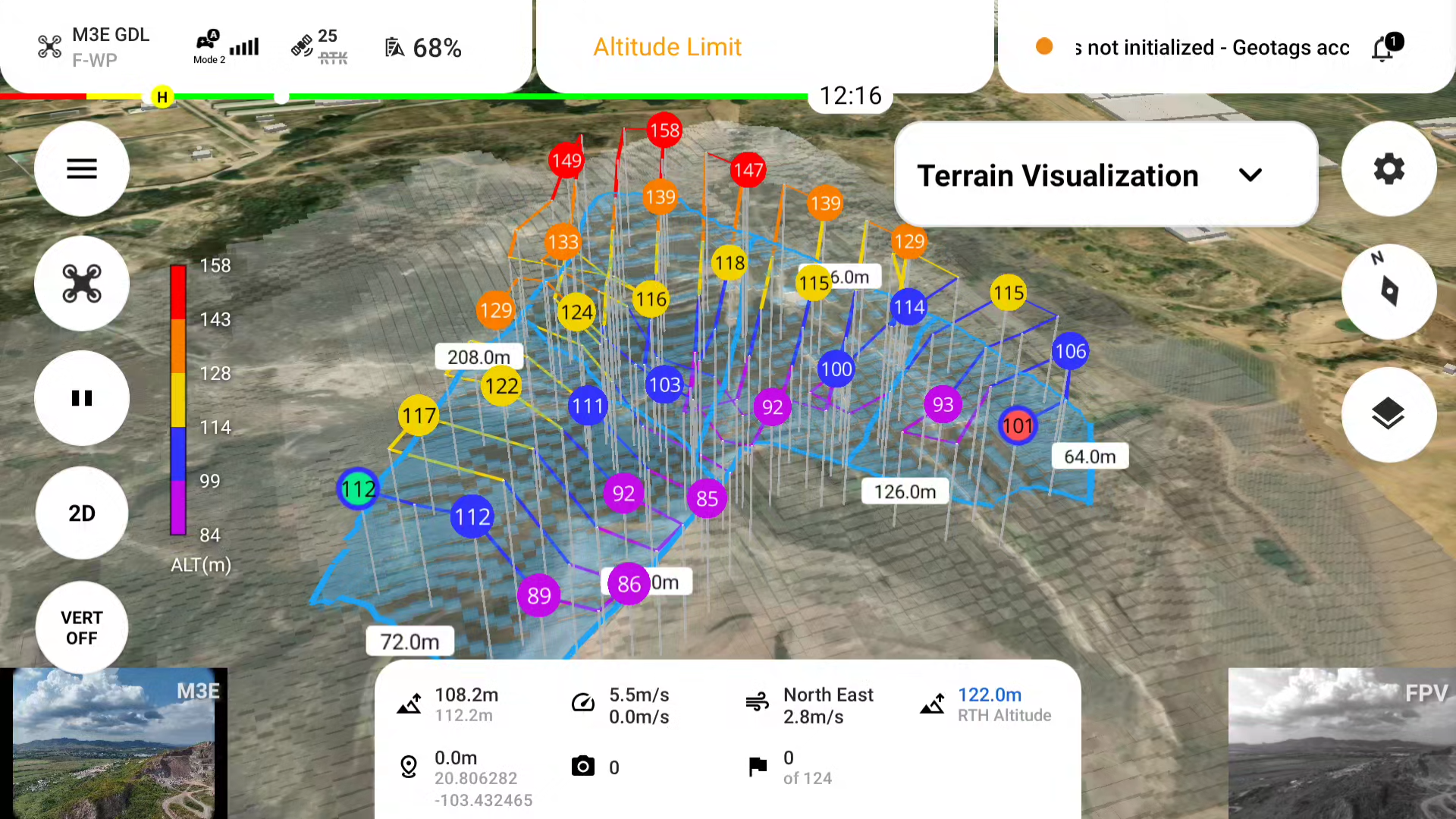

- Highwall Scanning and Terrain Following missions now display a dynamic color gradient that visualizes terrain elevation, improving terrain awareness and safety.
-
Users can select between displaying the Digital Surface Model (DSM) in RGB or
Grayscale- RGB: waypoint color corresponds to the drone's elevation at each waypoint.
- Grayscale: waypoint shade corresponds to the drone's elevation at each waypoint.
Version List
Recommended Versions
| Platform | Aircraft FW | Remote Control FW |
| Mavic 3 Enterprise | v17.01.05.08 | v02.01.08.04 |
| Matrice 300 + Smart Controller | v10.01.08.13 | v10.01.08.01 |
| Matrice 300 + RC Plus | v64.01.00.10 | v06.02.13.14 |
| Matrice 350 + RC Plus | v64.01.00.10 | v06.02.13.14 |
| Matrice 4 Enterprise | v17.02.05.01 | v01.64.08.20 |
| Zenmuse P1 | Zenmuse L1 | Zenmuse L2 | Zenmuse H20/H20T | Zenmuse H20N |
| v10.01.02.01 | v07.00.01.10 | v06.00.01.04 | 07.00.01.05 | 07.00.01.05 |
For any questions or feedback, please contact: product@skycatch.com
