SkyFlight Release Notes v3.4.0 (June 4, 2025) [English]

What's New!

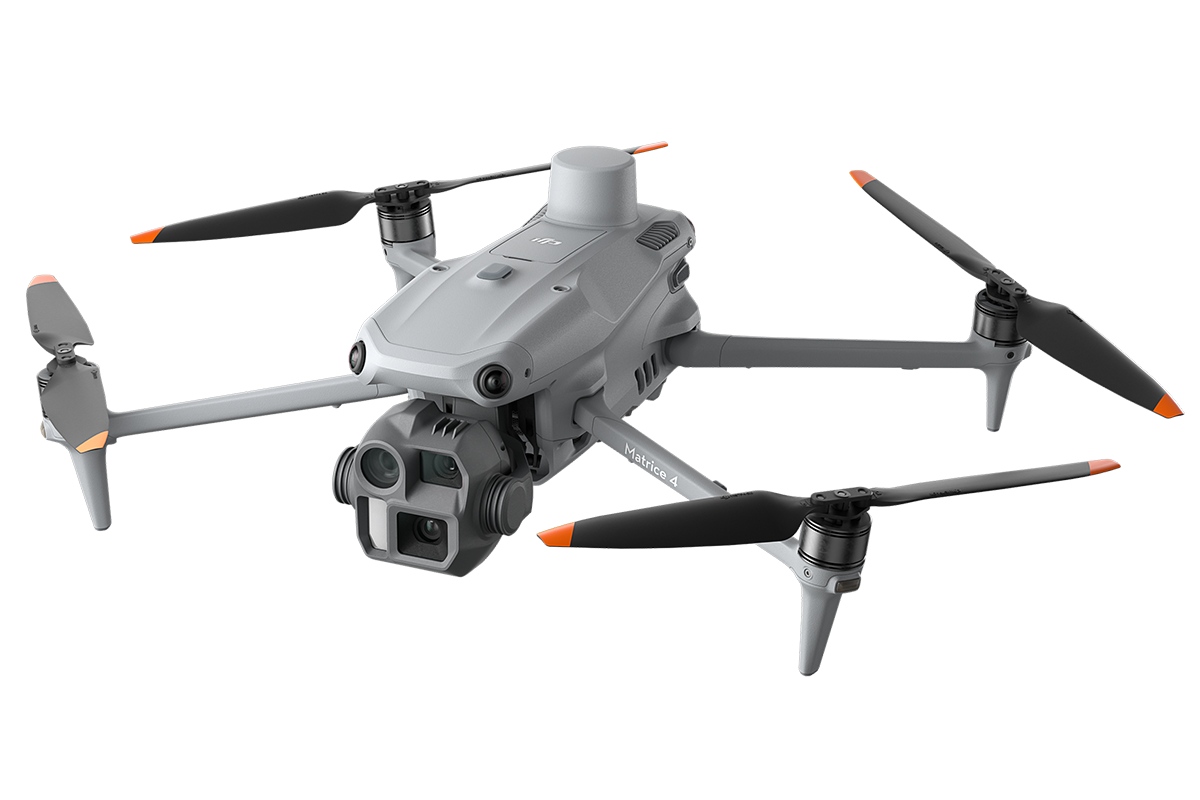

  • Matrice 4 Enterprise / Thermal Support
  • Linear Missions
  • Automatic Horizontal Shift (High Wall Scanning)
  • Hardening Items
  • Bug Fixes


Matrice 4 E/T Support

  • Support for Matrice 4 series on standard workflows
    • 2D Mapping Missions
    • High Wall Scanning Missions
    • Waypoint Inspection Missions
    • Linear Missions (New)
    • Manual Missions

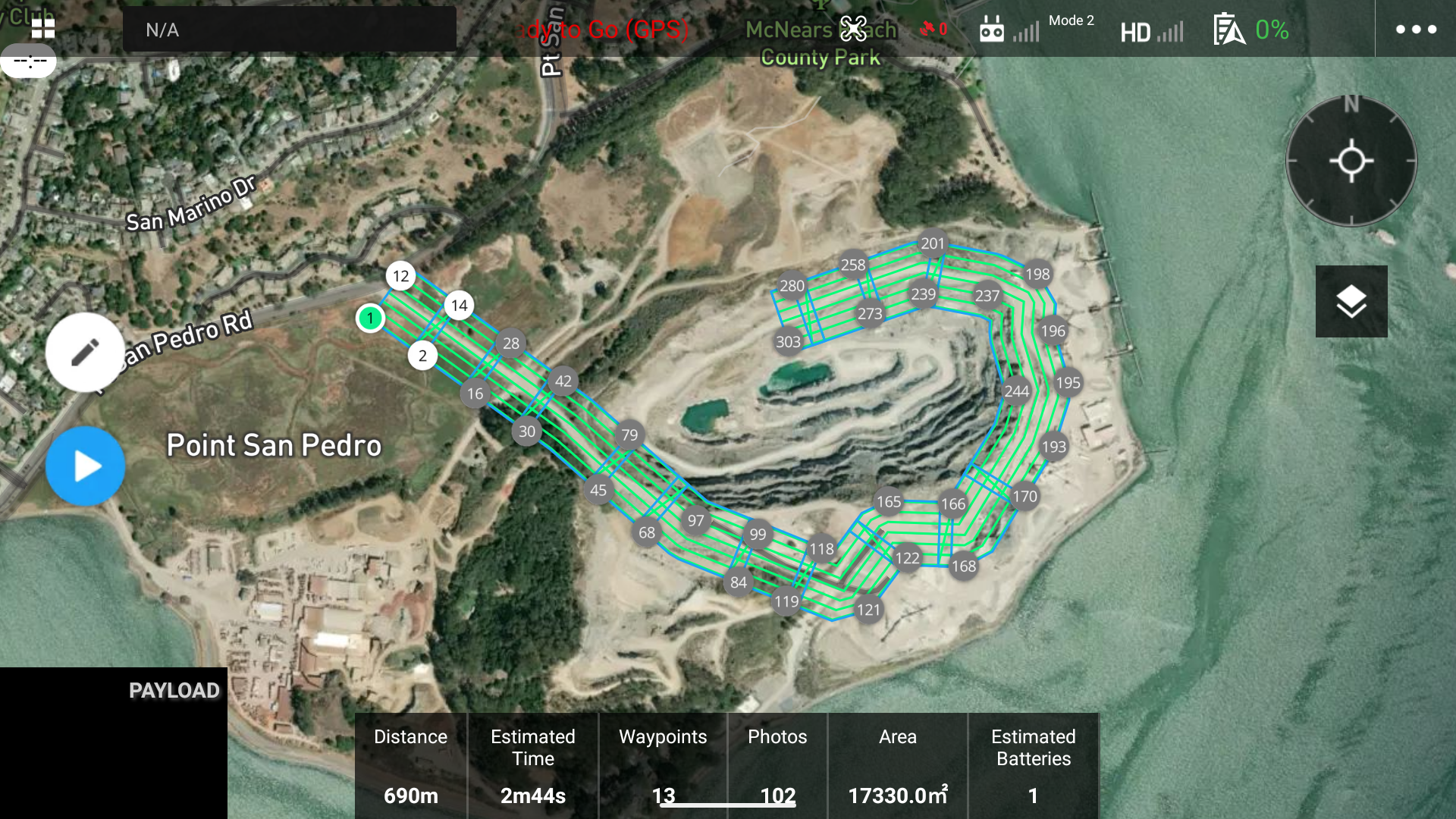

Linear Missions

  • Automatically plan and execute Linear Missions with RGB or LiDAR workflows
    • Efficiently scan long stretches, such as haul road networks
  • Generate the fastest mission plan while still retaining necessary overlap to process accurately

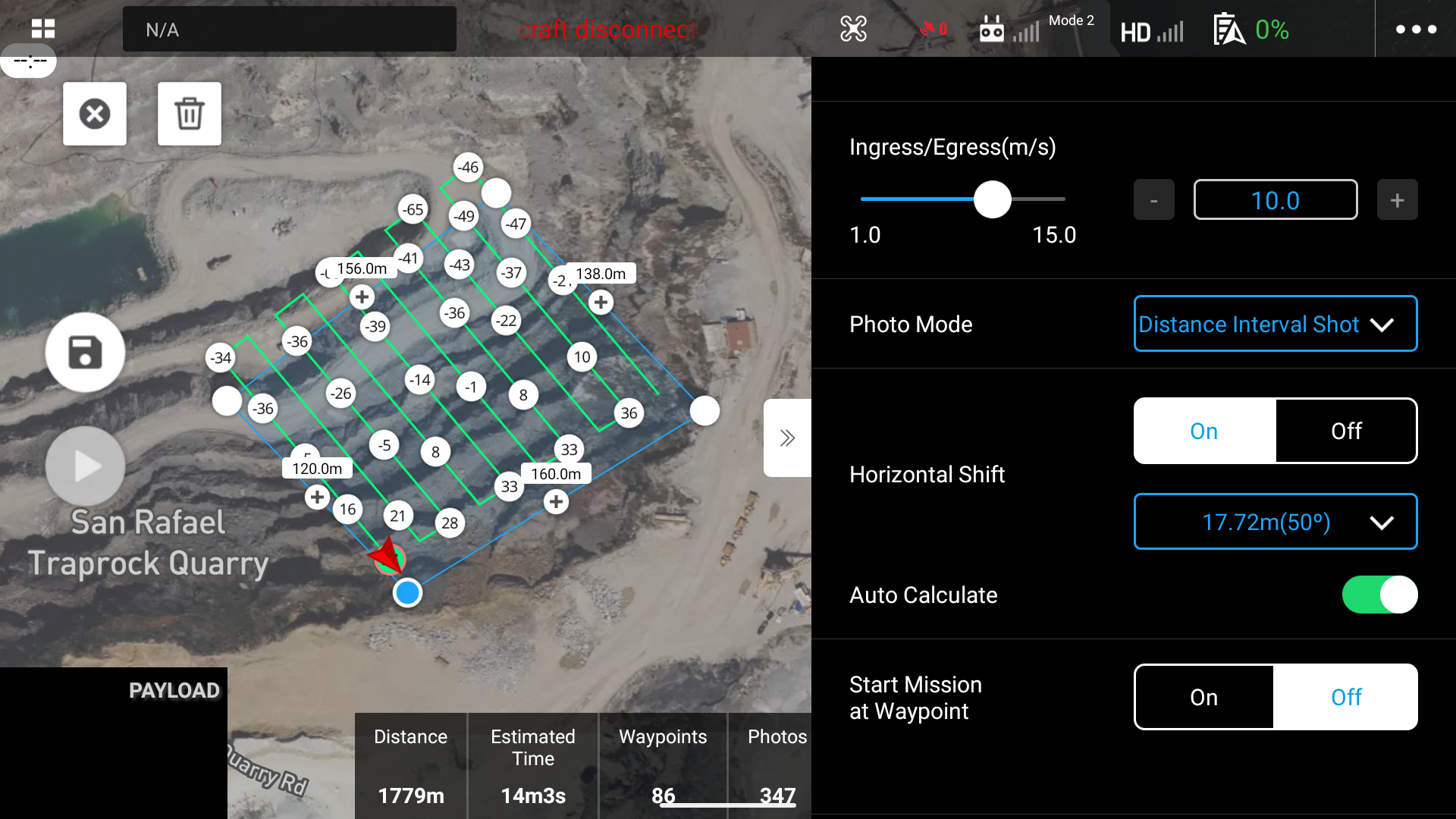

Horizontal Offset (HWS)

  • Automatically calculate and apply the correct horizontal offset for High Wall Scanning missions to ensure the best output
  • Option to disable Horizontal Offset setting if desired


Version List

Recommended Versions

Platform

Aircraft FW

Remote Control FW

Mavic 3 Enterprise

v12.15.06.01

v02.01.05.29

Matrice 300 + Smart Controller

v10.01.08.01

v10.01.08.01

Matrice 300 + RC Plus

v63.00.04.10

v05.02.13.04

Matrice 350 + RC Plus v13.00.04.12 v05.02.13.04
Matrice 4 Enterprise  v13.01.00.10 v01.61.04.05
Zenmuse P1 Zenmuse L1 Zenmuse L2 Zenmuse H20/H20T Zenmuse H20N
v07.00.01.10 v07.00.01.10 v04.00.10.01 07.00.01.05 07.00.01.05

Known Limitations

  • Real Time  Following (Mavic 3 Enterprise)

    • If the drone flies over the home point when performing Real Time Terrain Following, the mission will mark complete even if it not yet complete
    • Workaround: Select a home point outside the boundaries of the mapping mission
  • Closing SkyFlight Application During Battery Swap
    • If the SkyFlight application is closed during a battery swap mid-mission, the photos & logs will be stored in two separate folders
    • Workaround: Leave SkyFlight open and running during the entire mission
  • WiFi Connected Without Internet Connection
    • If SkyFlight is connected to a WiFi network that has no connection to the internet, it will increase loading times
      • Note: Unstable network connections work fine
    • Workaround: If WiFi network has no internet connection, disconnect from network

For any questions or feedback, please contact: product@skycatch.com
