What's New!
• Waypoint Inspection Missions
• Overlay multiple polygons from a single KML
Check out the walkthrough here:

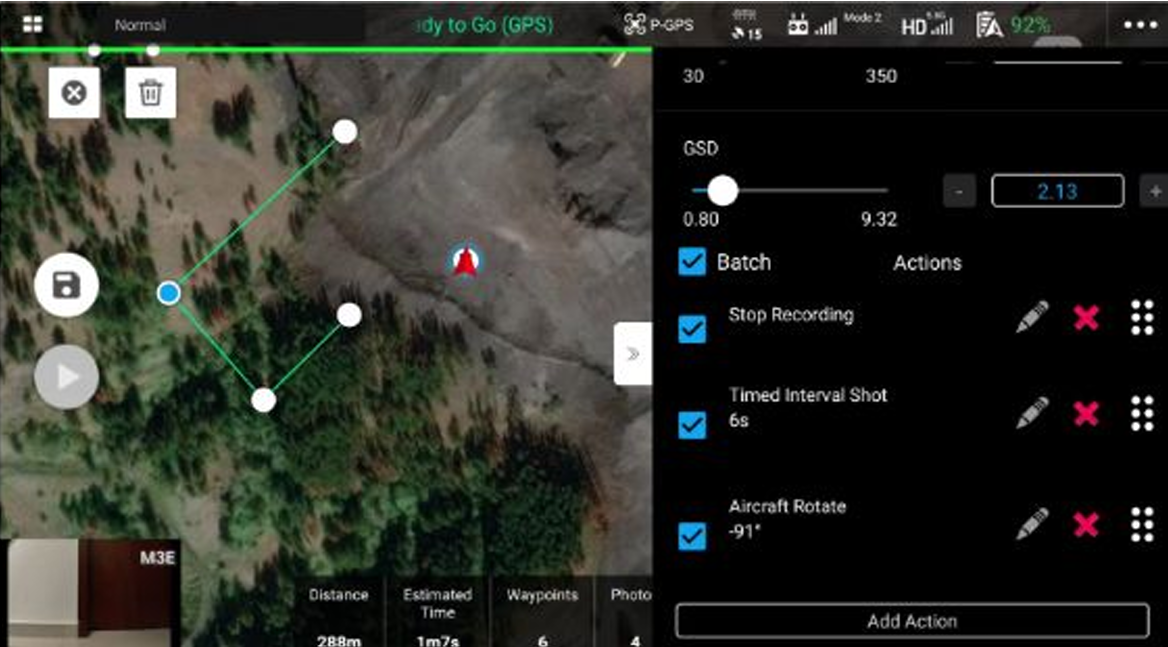

Waypoint Inspection Missions
• Create Waypoint Inspections Missions for a variety of inspection applications
- Photos and Videos
- LiDAR Scanning

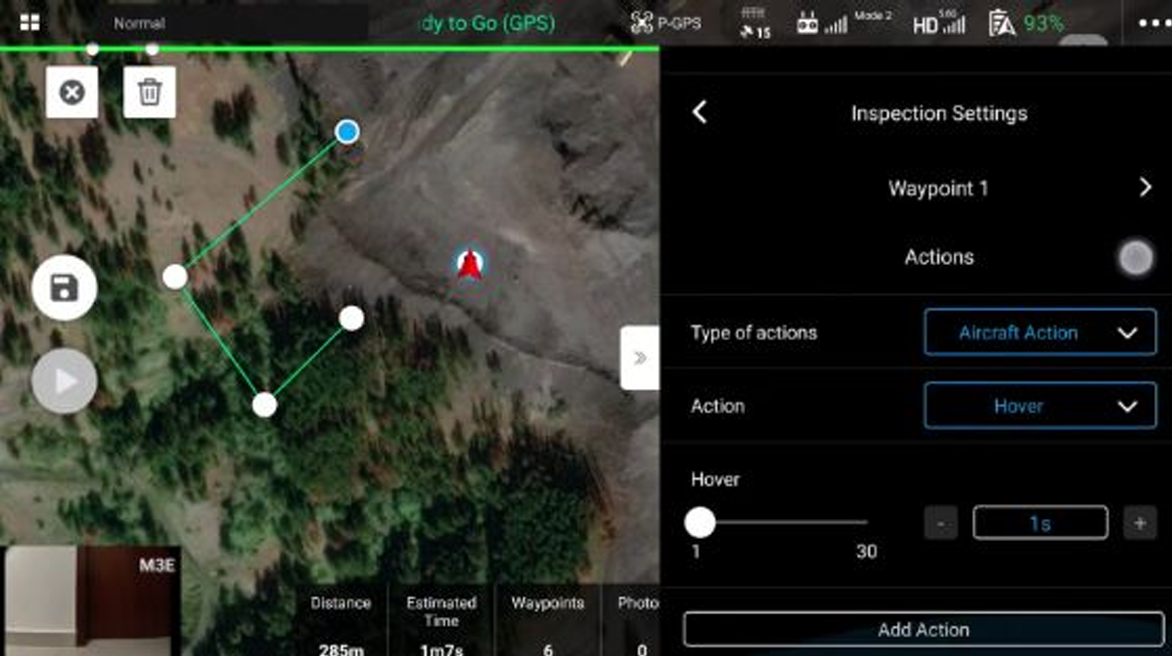

• Specify actions to perform at each waypoint as well while flying from point to point
• Store waypoint actions as Batch Actions to be easily reused at other waypoints

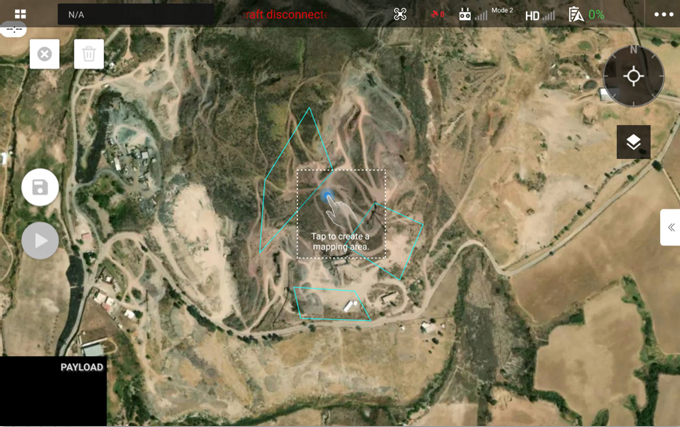

Multi Polygon KML Overlay
• System capability to overlay multiple polygons contained in a single KML file
Version List
Recommended Versions
| Aircraft | Remote Control | |
| Mavic 3 Enterprise | 10.01.0503 | 02.01.05.10 |
| Matrice 300 + Smart Controller | 09.00.05.03 | 60.01.00.03 |
| Matrice 300 + RC Plus | 09.00.05.03 | 05.02.11.06 |
| Matrice 350 + RC Plus | 10.01.00.09 | 05.02.11.06 |
| Zenmuse P1 | Zenmuse L1 | Zenmuse L2 | Zenmuse H20/H20T | Zenmuse H20N | GL60 Zoom |
| 07.00.01.10 | 07.00.01.10 | 04.00.10.01 | 07.00.01.05 | 07.00.01.05 | 10 |
Known Limitations
• Real Time Terrain Following (Mavic 3 Enterprise)
- If the drone flies over the home point when performing Real Time Terrain Following, the mission will mark complete even if it's not yet complete.
- Workaround: Select a home point outside the boundaries of the mapping mission.
• Closing SkyFlight Application During Battery Swap
- If the SkyFlight application is closed during a battery swap mid-mission, the photos and logs will be stored in two separate folders.
- Workaround: Leave SkyFlight open and running during the entire mission.
• WiFi Connected Without Internet Connection
-
If SkyFlight is connected to a WiFi network that has no connection to the internet, it will increase loading times.
- Note: Unstable network connections work fine
- Workaround: If WiFi network has no internet connection, disconnect from network.
For any questions or feedback, please contact: product@skycatch.com
