Version List

Software Version

• EdgeServer App v1.3.0

  • Projector v6.4.1

  • Reprojector v2.3.1

  • Surveyor 2.9.0

• System OS

  • Ubuntu Server OS v22.04.3 LTS

What’s New?

New Features

• Data Discovery Application

• UTM Outputs

• Cloud Sync 3D Mesh

• DXF Type Selector

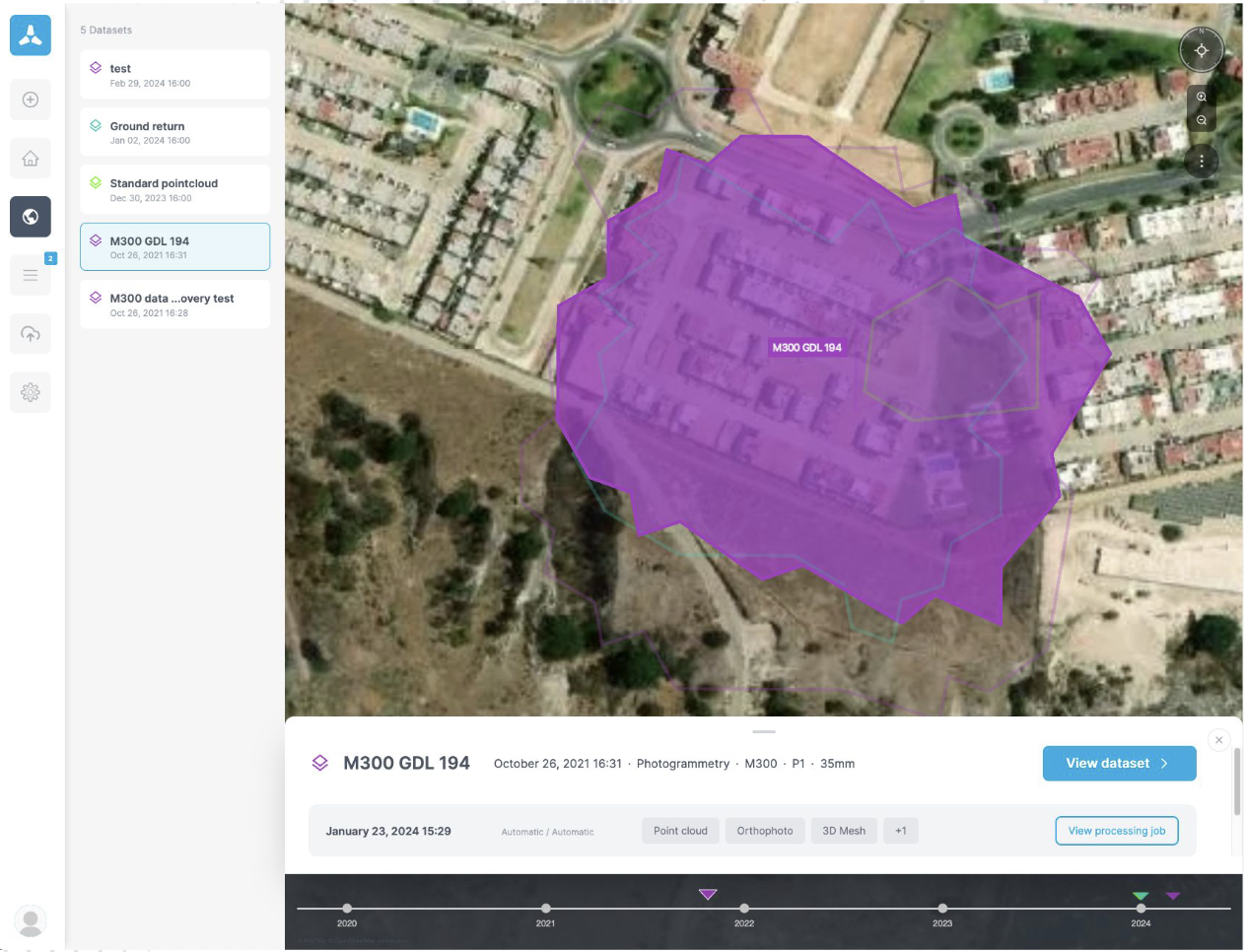

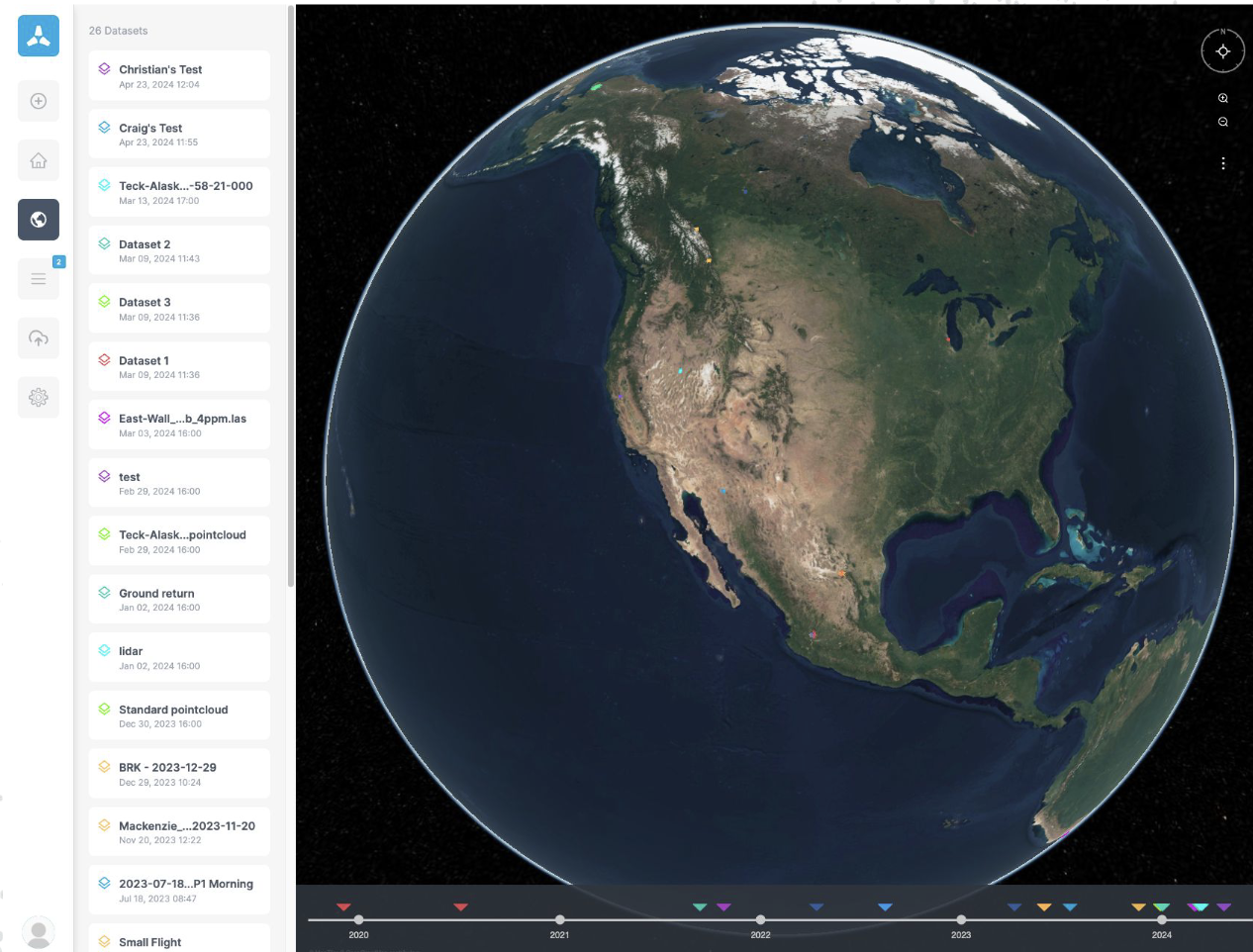

Data Discovery



• A novel way to organize and locate geospatial data visually
• Filter by area of interest and time range
• Gain quick insights into existing data regarding processing quality and available outputs
• Navigate directly to data to utilize or reprocess

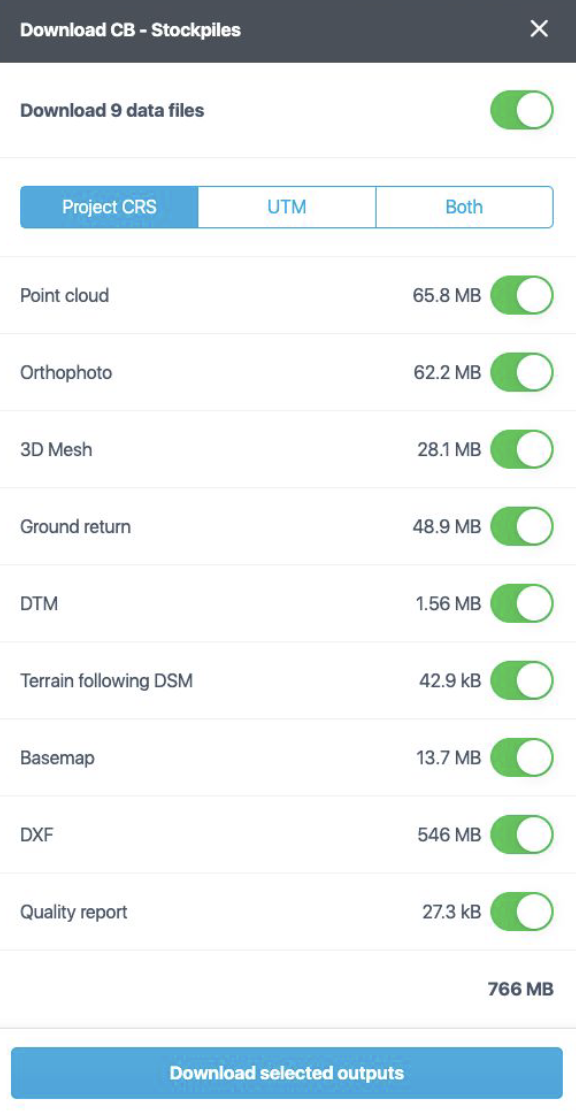

UTM Outputs

• Automatically generate outputs in UTM as well as Project Coordinate Reference System
• Download both UTM & Project CRS outputs
• Backup both UTM & Project CRS outputs

Cloud Sync 3D Mesh & DXF Entity Selector

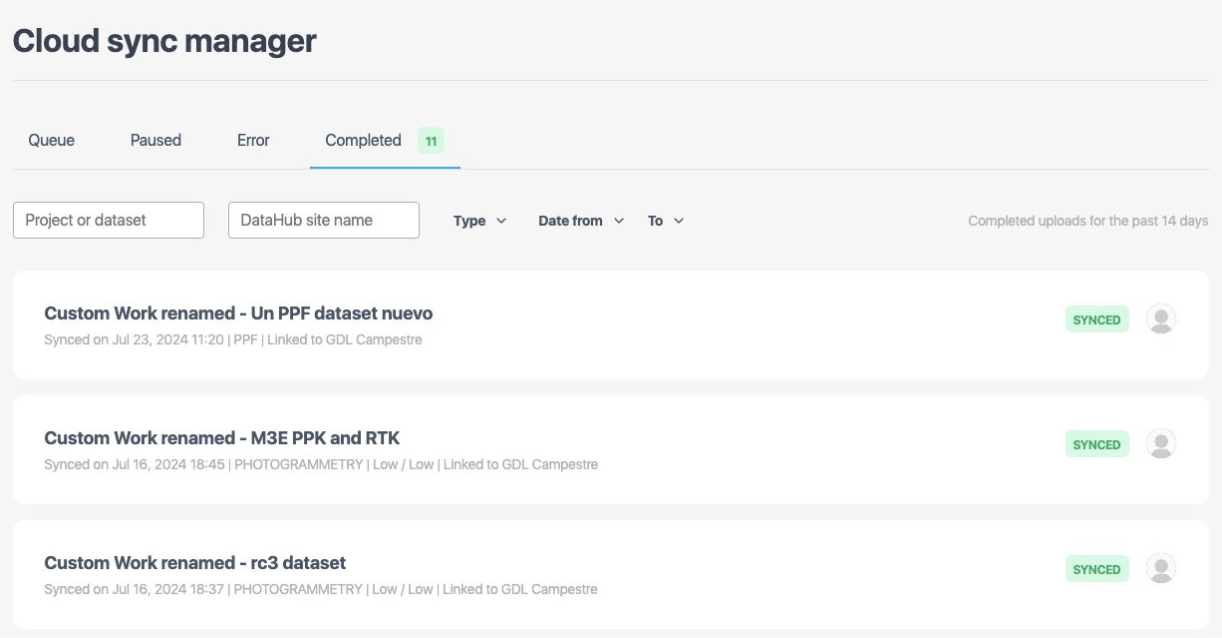

• Automatically synchronize the 3D mesh generated on EdgeServer to DataHub

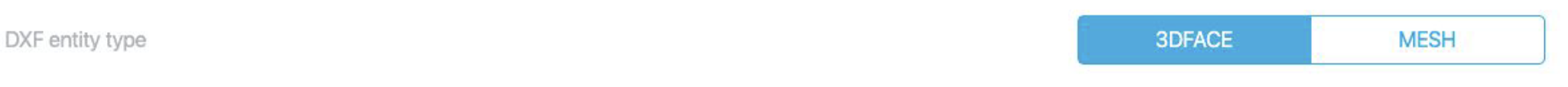

• Select the type of DXF surface generated by EdgeServer



Known Limitations

1. Some P1 - 24mm lens datasets that don’t have altitude optimization and/ or bad PPK/RTK solution can produce gaps or missing sections on the point cloud produced by EdgeServer 1.3.0
   We at Skycatch recommend always performing missions with altitude optimization enabled and via RTK/PPK to ensure good accuracy and reconstruction of the outputs
2. There have been cases where PPF Pointcloud visualization on the Advanced Viewer may be displayed below the ground level
