Version List
Software Version
- EdgeServer App v0.1.0
- Projector v6.2.0
- Reprojector v2.3.1
- Surveyor 2.9.0
- System OS
- Ubuntu Server OS v22.04.3 LTS
Supported Sensors
| Skycatch Vision 1 (35mm) | Zenmuse P1 (35mm) | P4RTK | M3E | M210 |
| v11.00.02.09 | v04.00.02.05 | FC6310R | DJIM3E |
FC6540 |
What's New?
- EdgeServer Processing
- Cloud Sync
- Local Data Access
- Multi-Client Access
- EdgeServer Interface v0.1
- Geospatial viewer (Basic)
FEATURES

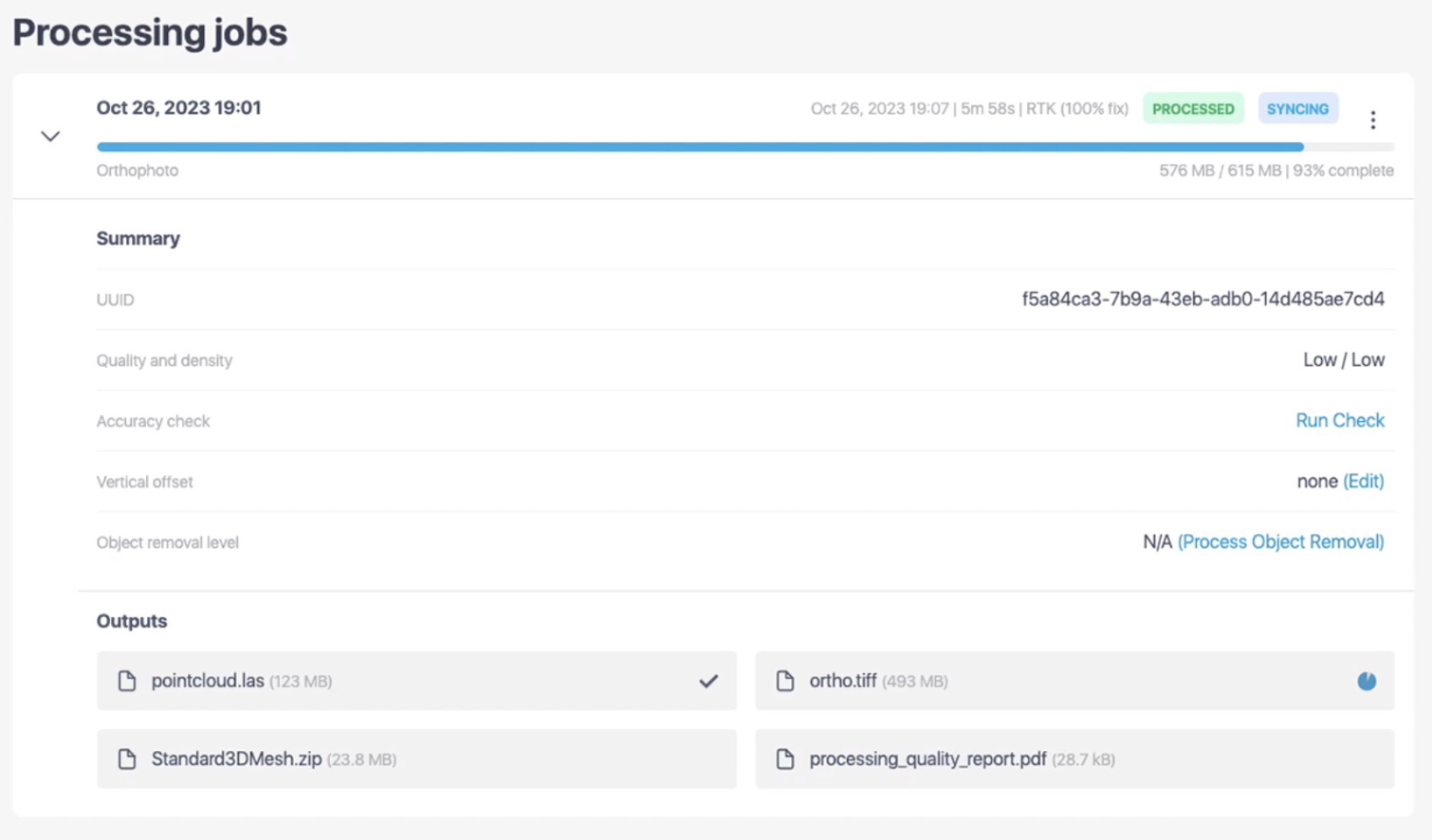

EdgeServer Processing
- Ready for multi-core processing
- Full utilization of available resources
- Standard and Highwall Mapping missions
CloudSync
- It is possible to link EdgeServer projects with a Site on DataHub
- Syncing will happen automatically, right after processing has been completed
- Retry mechanism for failed uploads
Local Data Access
- No need for internet access. EdgeServer works in complete offline environments.
- Access through the Local Area Network
- Benefit from the high transfer speeds by utilizing the local area network bandwidth.
- Direct download from the EdgeServer to the local file system
Multi-client Access
- Support for multiple sessions in parallel from different computers or browsers
- Sessions do not collide with each other. Actions will be reflected in real time but do not interfere with other users' actions.
- Currently, access is only restricted to the local area network

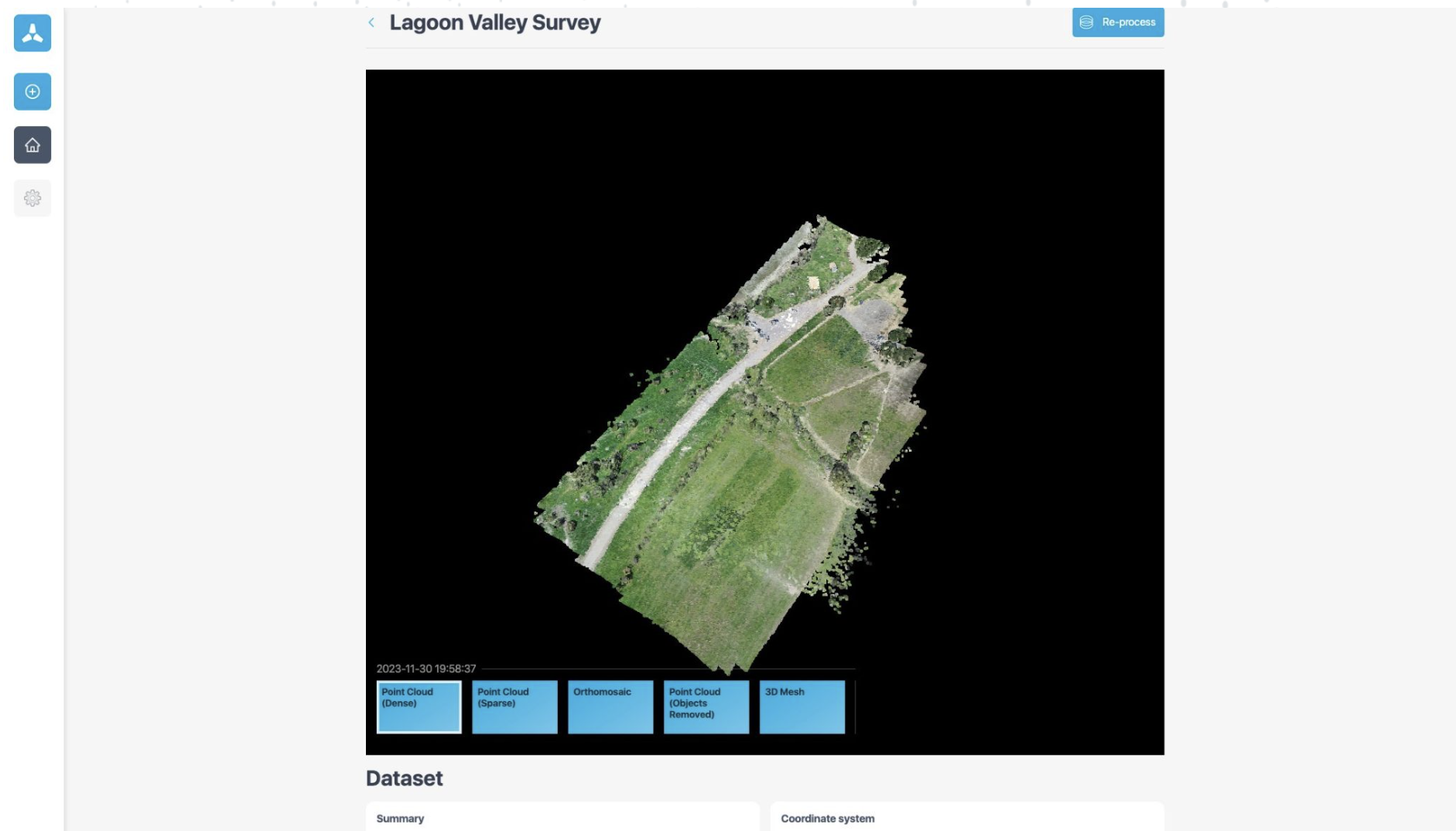

Geospatial Viewer (basic)
- Basic built-in geospatial output viewer
- Capable of displaying:
- Point Clouds
- Orthophoto
- 3D Mesh
- 3D Navigation
LIMITATIONS
- Select a site dropdown that only displays the first 20 sites from a DH ORG
- Importing minimized banner remains there after a failure on the importing
- 3D Mesh Viewer not working correctly on Chrome or Safari on Mac
- Non-dewarp dataset processing job fails
- RTK fix is not consistent between modal and processing job details for non-dewarp datasets
- Not able to import 2 folders when using Browse and Select flow
- When Storage is at full capacity, the UI doesn't respond correctly
- On Safari, some buttons are not correctly aligned
- Scroll down when calculating the PPK fix on the Import Modal
- The user is not able to import Rover logs after the first try or import them separately
- User is not able to import multiple datasets on the same tab
- Intermittency (Flickering) is happening on the dataset getting imported while another job is getting processed
- Localization file with an incorrect unit of measure doesn't show an explicit error message
- After changing the DH site name, EdgeServer won't be reflected automatically (The page needs to be refreshed)
- Importing a dataset while the Quality Report is open, causes intermittency (“Flickering”)
- Firefox is not able to drag and drop multiple files
- %Fix Truncate is not the same on Import modal and processing job details
- Outputs sections divider overlaps with Import floating modal
- Custom base map generation fails for 1.5k photos for High/High
- The Delete button is enabled and working while syncing is going on
Note: Known limitations have been identified and will be addressed in future versions
